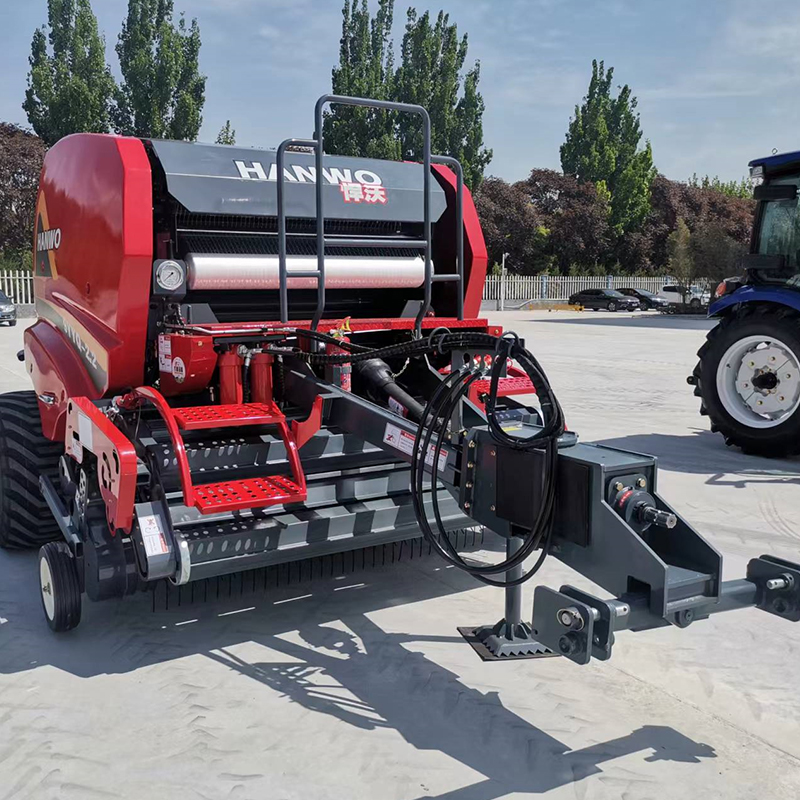

9YYQ-2.2 round straw baler

Overview

●Wide range of application

It can be used for the bundling of corn straw, wheat straw, rice straw, grass, reed straw, etc., and can also be used for the bundling of piles of sugarcane leaves collected manually in advance.

●Wide adaptability and high clearance

It can adapt to various terrain and ground conditions, especially in paddy fields and meadow depressions.

●High working efficiency and guaranteed compaction density

The pickup without guide rail with 6 rows of spring teeth or the pickup with guide rail with 4 rows of spring teeth and 3 active rotating grass rollers is more efficient, and can easily cope with the instantaneous peak feeding amount.

The combination of force-feeding mechanisms contributes to the formation of higher density bales. About 30 seconds to bundle a pack; All kinds of straw bale weight standard.

●Bale size: 1.2m diameter, 1.4m width. The rope net is wrapped without any cracks.

Specs

No.	Technical specification
1	Model & name	9YYQ-2.2 round straw baling machine
2	Linkage	pull-type
3	Pick up width	2200mm
4	Pickup structure type	spring-tooth
5	Type of feeder structure	Screw continuous feeding mechanism
6	Compression chamber baling mechanism type	Roller type
7	Compression chamber width	1400mm
8	Compression chamber diameter	Φ1200mm
9	Number of working parts for rolling	18
10	Roller diameter	Φ222mm
11	Bundling method	Tangle net
12	Tractor PTO speed	Standard 540/ Optional 760RPM
13	Matching tractor horsepower range	≥132.4/180KW/HP

Features

High efficiency

The baling operation of forage grass and crop straw is fast, which improves the harvesting efficiency of forage grass and crop straw, and saves time and labor costs.
Circular baler

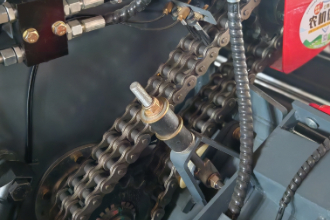

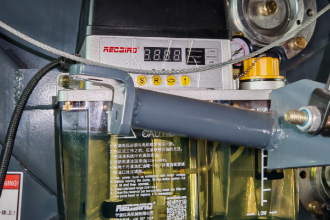

1, six rows of elastic teeth without ring pickup, lower failure rate, higher pickup efficiency, about 30 to 35 seconds to pick up a pack. 2, more convenient maintenance and replacement of spring teeth. 3. The 100H heavy chain is used as the main chain for picking up and feeding, and the roller bearing is configured with maintenance-free PEER brand bearings, which is reliable and strong. 4, the use of 4L large capacity electric lubrication pump, to meet the lubrication needs of two days of operation, easier to use.
Meet compaction requirements

Can compact grass, reduce the volume per unit weight, improve transportation efficiency and storage capacity.

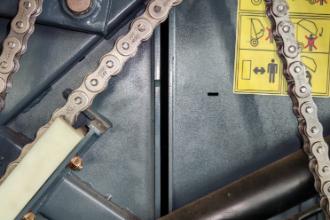

Round baler

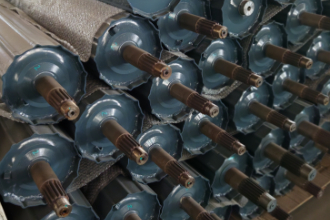

1, round bale shape Φ1200×1400 (mm), single bag weight 250~350kg. 2, the side plate of the bundling room is made of manganese steel, the thickness of the front bin board is 8mm, the thickness of the rear bin board is 6mm, wear-resistant, stable structure, and can bear greater weight of the bale. Equipped with 18 high edge thickening rollers, effectively prevent the bale from slipping. The wall thickness of the roll is 3.75mm, and the roll passes the 650 kg round bale pressure test, avoiding the straw pack pressure of the fracturing roll, and the reliability is higher.
Easy to operate

User-friendly design, easy to operate, simple and easy to understand operation procedures.

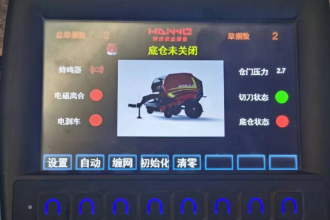

Round baler: 1, 7 inch display monitoring at a glance.2, automatic mesh mode, the first buzzer, pick up the stop, the second buzzer, open the warehouse door, bundling operation is simpler.
Applicability

Suitable for different types and sizes of ranches, whether large or small, can work.

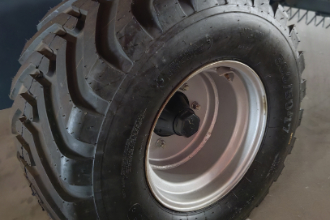

Round baler: 1, the semi-shaft adopts French MONROC products, reliable quality. 2, the tire is 500/50-17, adapt to a variety of ground conditions, can easily cross the water field ridge, meadow depression, muddy conditions are stronger.
