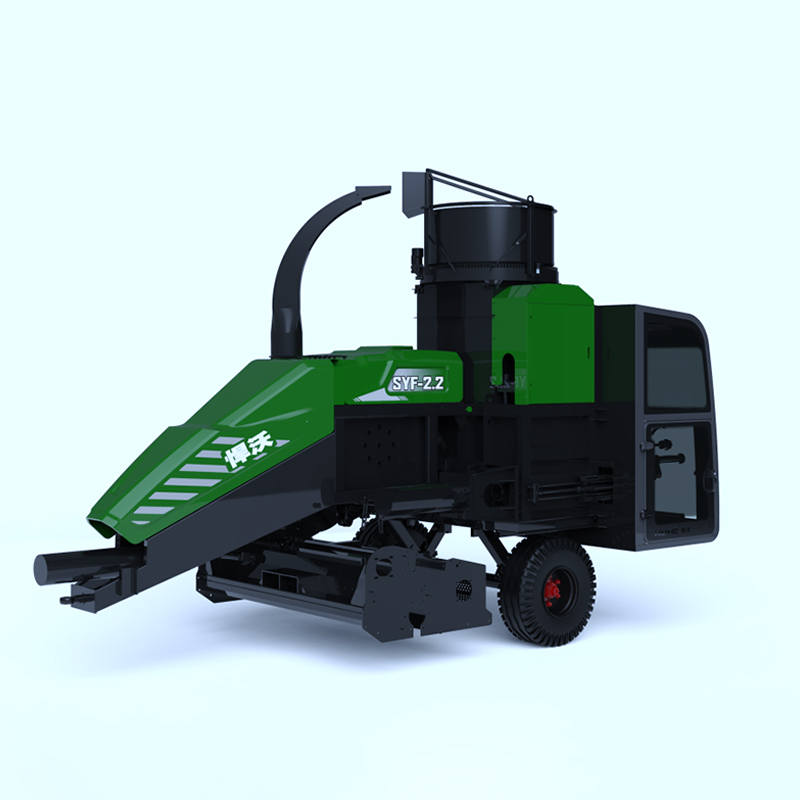

9YF-2.2 straw and feed pickup square baler

Developing machines that can make money for users is one of HANWO's key goals. For each square baler, high efficiency is a primary consideration. HANWO's excellent design engineers have combined years of technical precipitation with the most cutting-edge technology to create this 9YF-2.2 square baler. In addition to high efficiency, it also has the advantages of high adaptability, versatility and reliability, and is a machine that can make customers profitable and win their trust

Inquire Now Next Product

Overview

●Designed for farm feed collection

Can do green storage feed, yellow storage feed and dry storage feed bagging operations

●Suitable for a variety of crop straw picking and bundling operations.

Can collect corn straw, wheat straw, alfalfa grass, peanut seedlings, soybean straw and other forage. Standing stalks, laying stalks, and broken stalks harvested by machines can be automatically picked up and bundled.

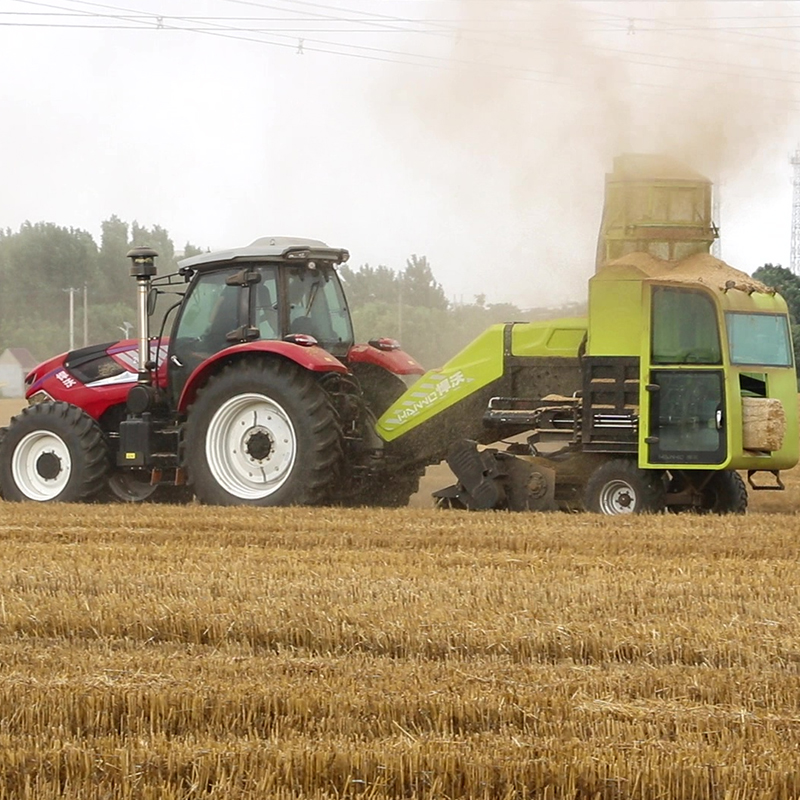

●Bridge traction is easy to operate and has good passability

The traction Angle of the bridge can reach 45°, and it can turn at a large Angle during operation. The lift cylinder of the pickup with the Hitch allows the picker to lift in a wide range to adapt to the uneven terrain.

●Feed directly without secondary treatment

The straw bale can be directly fed to livestock after being crushed and kneaded twice and dusted three times

●The straw bale is straight, the rope net is all wrapped without gapsBale size: length 80 cm, width 35 cm, height 45 cm

Specs

No	Technical specification
1	Model & name	9YF-2.2 straw and feed pickup baling machine
2	Linkage	pull-type
3	Straw bale dimensions	800×450×350mm
4	Bale packing form	Nylon net bundle (300 wide）
5	Pick up width	2200mm
6	Pickup structure type	hammer-claw
7	The number of hammer claws of the pickup	22
8	Feeder structure form	Screw continuous feeding mechanism
9	Compression chamber section dimensions(W x H)	340×440mm
10	Matching tractor power range	≥132.4（180hps）
11	Matching tractor PTO speed	720/760 RPM

Features

High efficiency: The baling operation of forage grass and crop straw is fast, which improves the harvesting efficiency of forage grass and crop straw, and saves time and labor costs.

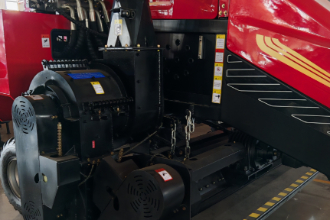

Square baler automatic packing operation, high efficiency: 1, automatic pickup, crushing, softening, dust removal, compaction, package, 2-3 packages/min, fast speed. 2, automatic winding system replaces manual, reduce labor intensity and difficulty, simple operation, high efficiency. 3, harvest crop straw kneading effect is good, high quality.
Meet compaction requirements: can compact grass, reduce the volume per unit weight, improve transportation efficiency and storage capacity.

Square baler:

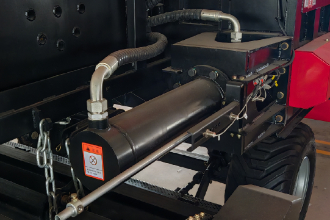

1, bale size: length 80 cm, width 35 cm, height 45 cm. 2, can collect corn straw, wheat straw, alfalfa grass, peanut seedlings, soybean straw and other forage. The straw can be automatically picked up by standing straw, laying straw and broken straw after machine harvest. 3, straw bale after 2 crushing kneading 3 dust removal, can be directly fed livestock. The yellow storage straw bale weighs about 50 catties, which is easy to handle and store. 4, compression chamber side panel materials are all made of 8mm thick manganese plate, more wear-resistant, strong. 5, the use of large diameter hydraulic cylinder, more reliable, effectively ensure the bale high compactness.
Easy to operate: user-friendly design, easy to operate, simple and easy to understand operation procedures.

Square baler:

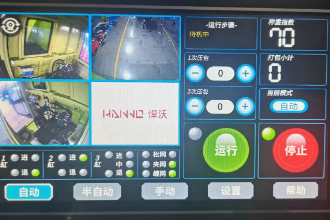

1, 10-inch electronic control screen, real-time monitoring of the operation screen, the operation process at a glance.
2, the sensor is Hall sensor, sensitive and accurate.
Good applicability: Suitable for different types and sizes of farms, whether it is a large farm or a small ranch, it can play a good role.

Square baler:
1, pick up machine can be adjusted up and down, easier to cross the ridge.2, feed port rotary screen can be disassembled, transportation and transfer more convenient.
